Sunday, December 11, 2016

A New Exposed Trackway on the Bright Angel Trail in Grand Canyon

Artists rendition of how the new trackway was created from Figure 8 in the paper. Art by Emily Waldman.

SECOND ADDENDUM

AUGUST 20, 2020: Today I received from Professor Steve Rowland at UNLV notice of his publication on this amazing trackway along the Bright Angel Trail in Grand Canyon. When I first came upon this newly fallen boulder in December, 2016, I knew it was something special just by looking at the detail encased on its surface. However, the authors have studied the entire trackway and setting in detail and conclude that: 1) these are the oldest tetrapod trackways in the Grand Canyon; 2) two sets of tracks are present on the dislodged block and are separated in time by only hours or days; 3) a light dusting of new sand (windblown) separates the two sets; and 4) the animals walked up a dune slope that was at an angle of 20° and that the animals walked at a speed of about one foot per three seconds. The trackways resemble those of the ichnofauna (trace fossil) Chelichnus, a common form found in younger layers above such as the Coconino Sandstone.

This paper is Open Access and can be downloaded here.

Citation: Rowland SM, Caputo MV, Jensen ZA (2020) Early adaptation to eolian sand dunes by basal amniotes is documented in two Pennsylvanian Grand Canyon trackways. PLoS ONE 15(8): e0237636. https://doi.org/10.1371/ journal.pone.0237636

Editor: David M. Lovelace, University of Wisconsin Madison, UNITED STATES

Received: October 21, 2019 Accepted: July 30, 2020 Published: August 19, 2020

Copyright: © 2020 Rowland et al. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

-----------------------------------------------


Here is a paleogeographic map of the Southwest during Manakacha Formation time. Courtesy of Ron Blakey, at deeptimemaps.com.


ADDENDUM

February 12, 2018: Since I made this post, Professor Stephen Rowland at UNLV has made a closer examination of the trackway and has determined that this was a single animal walking sideways with the toes pointing in one direction while the trend of the overall trackway is about 40 degrees clockwise from the direction the toes are pointing. He thinks the animal may have been fighting against a current, presumably wind, that was pushing it to the right as it struggled to move forward.

-----------------------------------------------

ORIGINAL POST

December 11, 2016:

Last month Helen and I got to visit Indian Garden located 4.5 miles down the Bright Angel Trail in Grand Canyon. Down in the Pennsylvanian Supai Formation, about 2.5 miles in, we came across a new exposure of a great reptile trackway. I took a few pictures and share them here.

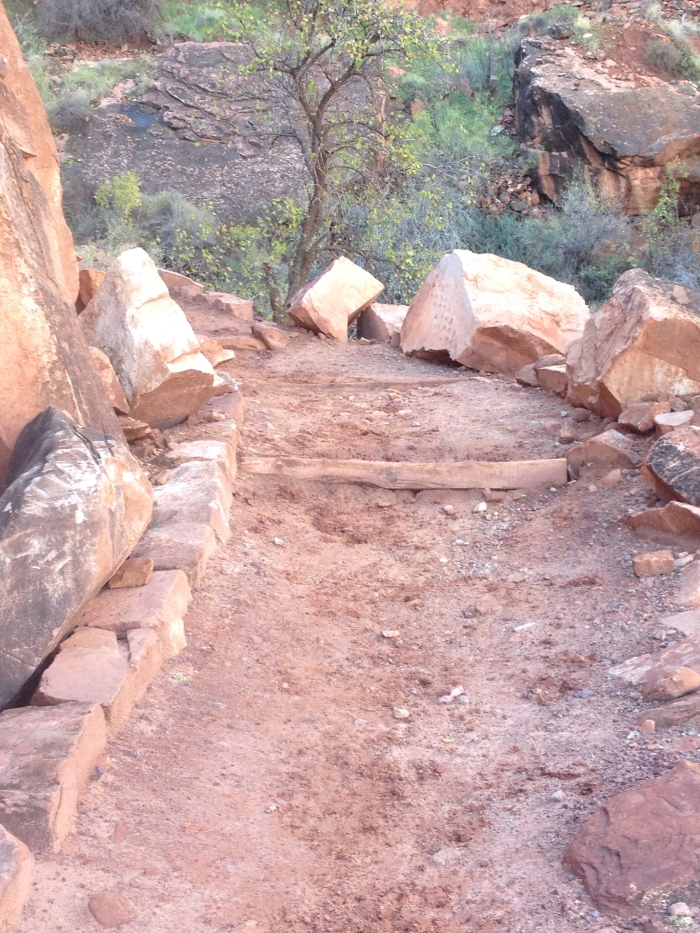

During the summer monsoon, a number rocks were dislodged from the cliff on the left and rolled down onto the trail. Since then, the trail crew has cleared the rocks from the tread and placed them alongside the trail. This is a place where parallel joints are evident in the sandstone. These joints are parallel to the Bright Angel Fault and slivers of rock are always falling at this location.

Blasting was needed to move the rocks off the trail and it is unknown to me if the new trackway was exposed when the rocks fell off the nearby cliff or from subsequent blasting. What is known is that the trail crew was aware of the trackway and placed this boulder in perfect alignment to admire it.

Being closer to the trackway shows some well preserved claw marks in the individual prints (bottom). This must have been a lumbering type of reptile with each track closely spaced but the individual prints about 3 to 4 inches wide.

More claw marks. Two ichnofauna's are described from the Supai - Limnopus and Batrachichnus. A web search did not specify which these might belong to. Another likely candidate for these is Eryops and fossil skeletons that are Pennsylvanian in age have been found in nearby New Mexico. A description of this animal can be found here.

An example of Eryops reconstructed from fossil bones.

A fossil specimen of Eryops on display at the National Museum (Smithsonian, Washington D.C.)

It is possible that this is a set of two individuals walking one after the other. Most descriptions of reptiles from this time period suggest that the back and front tracks are nearly on top of each other and there are four lines of tracks here.

The block is big enough that it should remain in place for a long time.

Thanks to the Grand Canyon trail crew for making this specimen so readily observable.

Monday, December 05, 2016

Fifty Years Ago This Week the Great Floods Roared Down Crystal and Bright Angel Creeks

December 5, 2016

Anniversaries are something I tend to notice and I'm so glad I did not let this one slip by unnoticed. It was fifty years ago this week that a four-day storm moved through the greater Southwest leaving between 11 and 14 inches of rain in about a 76 hour period. The intense rainfall produced what the United States Geological Survey called a 1,000 year flood. The following article appears in the current issue of the Boatman's Quarterly Review and I am happy to share it with readers today so they too can imagine what occurred here just fifty years ago. The flood is an integral part of the lore and history of river running in Grand Canyon since it created one of the top three rapids on the river (Crystal Creek) and destroyed the Transcanyon Pipeline just months before its completion.


REVISITING THE GREAT CRYSTAL CREEK FLOOD FIFTY YEARS LATER

December 3 to 7, 2016 will mark fifty years since a giant flood roared down Crystal Creek (and many others) in the Grand Canyon. Nothing like it has been observed ever since and as we mark this historic anniversary, I thought it would be nice to set the record straight on what is known and what is not known about this great flood. We all know that Crystal Creek Rapid was enlarged to become one of the “big three” rapids in Grand Canyon. But through the years, enough rounds of “telephone” regarding the dimensions of the flood, what was affected, and how much water was involved, have perhaps obscured what really happened. Data for this flood comes from USGS Professional Paper 980, published in 1977 by Maurice Cooley, B. N. Aldridge, and Robert Euler (Euler contributed results regarding the effects of the flood on archaeological resources).

The storm that produced the flood was regional in scope and affected all of southwestern Utah, southern Nevada, northern Arizona, and southeastern California. Each of these four states saw major flooding and although the North Rim area received the most precipitation at Grand Canyon, not all of the drainages between Saddle Canyon and Deer Creek felt the brunt of this powerful storm. The South Rim also did not receive as much precipitation, just ten miles to the south. At the time of the storm, there was very little snowpack on the North Rim. There was zero snow on the ground at both Grand Canyon Village and at Jacob Lake, and only an estimated 4 to 6 inches blanketed the ground on the North Rim in early December and only a trace of snow fell during the storm. The last significant precipitation before the December event was on November 8 and 9, 1966 and it can be inferred that at the time of the big rain, the ground was moist but not completely saturated.

The storm moved in from the southwest and drifted northeast across the region. Precise rainfall data for the North Rim were not available because it had closed for the season in early November and the rainfall gages were not routinely monitored. There were two gauges in 1966 – one at the North Rim Entrance Station (about 13 miles from the rim) and the other at Bright Angel Ranger Station (near the rim where the administrative area is today). At the Entrance Station between November 1 and December 7, 1966, 17 inches of rain had fallen. NPS personnel estimated that a maximum of only 3 inches was from the prior November storm and that the remainder - 14 inches - is the amount that fell during the December storm. At the Ranger Station on the rim, the gauge was not read between October, 1966 and May, 1967 but it held about 83% of that found at the Entrance Station gauge. This means that between 11 and 14 inches of rain must have fallen on the North Rim during the December flood. This is a good number to use on your trips when describing the flood.


Ranger John Riffey was monitoring his gauge at Toroweap Valley and he reported that precipitation started at 1 AM on December 3 and continued through 9 PM the same day (20 hours of rainfall). After a 21-hour break, it started again on December 4 at 6 PM and, with the exception of only three hours, continued non-stop until 4 AM on December 7, making for 55 hours of rain in a 58 hour period! The total measured precipitation at Toroweap (elevation 4,775 ft.) for the five-day period was 6.05 inches – nearly equal to the full year average of 6.8 inches. Since Toroweap is a bit west of the North Rim and a lot lower in elevation, it is surmised that the most intense rainfall over the North Rim drainages likely fell between December 5 and 7 and that any perceived lack of certainty regarding the precipitation data from the rain gauges is probably near to being correct at 11 to 14 inches.

Flood damage was reported from a series of after-storm reconnaissance missions in the canyon. Four distinct areas were shown to have high runoff. The first was a 5- to 7-mile-wide area running from Crystal to Nankoweap creeks, including not only Crystal and Bright Angel creeks, but also Clear Creek, Lava Chuar, and Kwagunt basins. Curiously, Unkar, Vishnu and Saddle canyons showed little evidence of high runoff, as well as the Crystal drainage on the rim and the upper portions of the Bright Angel drainage. This suggests that much of the precipitation likely fell within the canyon rather than on top of the rim (although certain drainages on the rim did see heavy flooding). The other three zones with significant evidence for extreme runoff were the Modred, Merlin, and Gawain Abysses in Shinumo Creek; at the North Rim Entrance Station where Shinumo Creek, Bright Angel Creek, and North Canyon Wash converge; and near the Cocks Comb at the head of North and South canyons.


Estimated maximum discharge was calculated for various side canyons: North Canyon Wash saw 800 cfs; Nankoweap, 3,000 cfs; Kwagunt, 1,200 cfs; Bright Angel, over 4,000 cfs; . Shinumo Creek, 2,000 cfs, and Crystal Creek, at over 30,000 cfs, with the vast majority of this coming out of the Dragon Creek arm. Mud- and debris-flows were reported in many of the side canyons, as well as severe lateral and downcutting erosion in numerous stream channels. Flow within Roaring Springs was also affected with a measured discharge on December 9 of 150 cfs (baseline flow is about 21 cfs). NPS personnel reported that water emerging from the spring was red and muddy on December 7, turning to yellow on December 9. The pump house at Roaring Springs was damaged when 2 ½ feet of water ran through the building and the Powerhouse just downstream from there (where the operator lived) was destroyed. In the 1977 USGS Professional Paper, it was reported that the flood washed out the trail in Bright Angel Canyon and “a $2 million pipeline” along Bright Angel Creek, and that “3 ½ years and an additional $5 million were required to rebuild the pipeline and repair the trail.” Severe damage was reported at Phantom Ranch as well, although the buildings here were no more than about 44 years old at the time of the flood.


However, archaeological sites nearly 1,000 years old were affected by runoff from the flood as well. In Clear Creek, the side of a mescal pit was breached and destroyed by channel erosion. It was also reported that in Dragon Creek (one the two major tributaries of Crystal Creek) that the 1966 flood might have been the largest in this drainage since the Pueblo abandonment in about 1150 AD. This is where an 8½ by 11-foot diameter mescal pit (and not a dwelling site as is commonly heard) was completely obliterated by a mudflow. It was not known if the mescal pit was merely covered by the mudflow or eroded away entirely. William Wallace Bass’s Shinumo Gardens largely escaped the highest runoff levels in the flood but the water did flood the area where his gardens used to be.

At this time, let’s remember the storm 50 years ago that continues to affect our lives and those of anyone who runs Crystal Creek Rapid. In summary, about 11 to 14 inches of rain fell within a three to four day period, on no more than six inches of snow. Crystal Creek saw an amazing 30,000+ cfs and Bright Angel Creek over 4,000 cfs. Two mescal pits were affected and one was obliterated completely. May we all live long enough to see another one of these fantastic storms!
